AIM:
To write a Java servlet program to conduct an online examination and display the student mark list available in a database.
ALGORITHM:
- Create an HTML file with a form tag for login.
- The form tag should have action="http://localhost:8080/example/servlet/exam".
- Create two text boxes (Name & Seat Number) for user input.
- Define 5 questions in a True or False model and close all tags.
- Import the necessary packages and declare the servlet class.
- Declare the connection, statement, and result set objects for JDBC.
- Use methods to check the connection with the JDBC:ODBC driver.
- Insert data into the corresponding table using SQL queries.
- Update the database with executeUpdate() method.
- Display the results in a formatted HTML file after compilation.
PROGRAM:

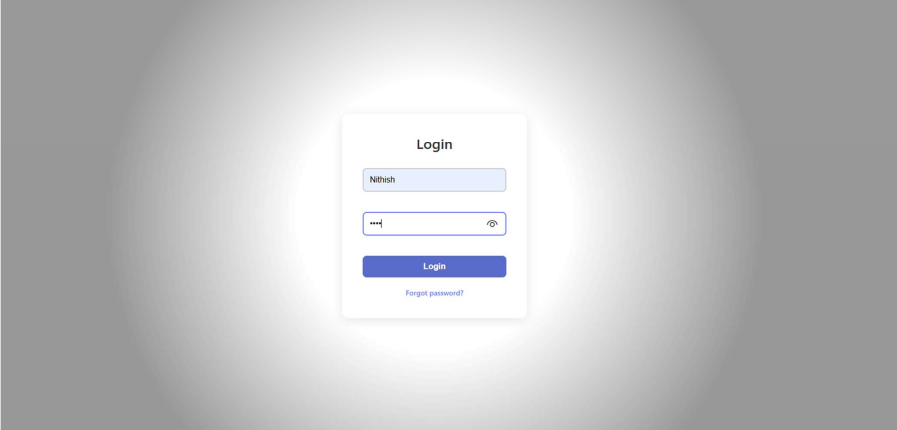

HTML Form (login.jsp)
<html>
<head>
<title>Login</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(131deg, #2c3e56, #37495e);
background-image: radial-gradient(circle, rgba(255, 255, 255, 0.3) 25%, rgba(0, 0, 0, 0.4) 60%);
display: flex;
justify-content: center;
align-items: center;
height: 100vh;
margin: 0;
}
.Container {
background-color: white;
padding: 40px;
width: 100%;
max-width: 360px;
border-radius: 12px;
box-shadow: 0 4px 20px rgba(0, 0, 0, 0.1);
overflow: hidden;
}
h2 {
text-align: center;
color: #333;
font-size: 28px;
margin-bottom: 30px;
font-weight: 600;
}
form {
display: flex;
flex-direction: column;
}
input[type="text"],
input[type="password"] {
padding: 12px;
margin-bottom: 18px;
border: 2px solid #ccc;
border-radius: 8px;
font-size: 16px;
transition: border-color 0.3s ease;
}
input[type="text"]:focus,
input[type="password"]:focus {
border-color: #6e7bff;
outline: none;
}
button {
background-color: #6e7bff;
color: white;
padding: 12px;
border: none;
border-radius: 8px;
font-size: 16px;
font-weight: 600;
cursor: pointer;
transition: background-color 0.3s ease;
}
button:hover {
background-color: #5a6cc9;
}
p {
text-align: center;
font-size: 14px;
color: #e74c3c;
margin-top: 10px;
}
.forgot-password {
text-align: center;
font-size: 14px;
color: #777;
margin-top: 20px;
}
.forgot-password a {
color: #6e7bff;
text-decoration: none;
font-weight: 600;
}
.forgot-password a:hover {
text-decoration: underline;
}
</style>
</head>
<body>
<form action="login" method="post">
<label>Username:</label>
<input type="text" name="username" required><br><br>
<label>Password:</label>
<input type="password" name="password" required><br><br>
<input type="submit" value="Login">
</form>
</body>
</html>

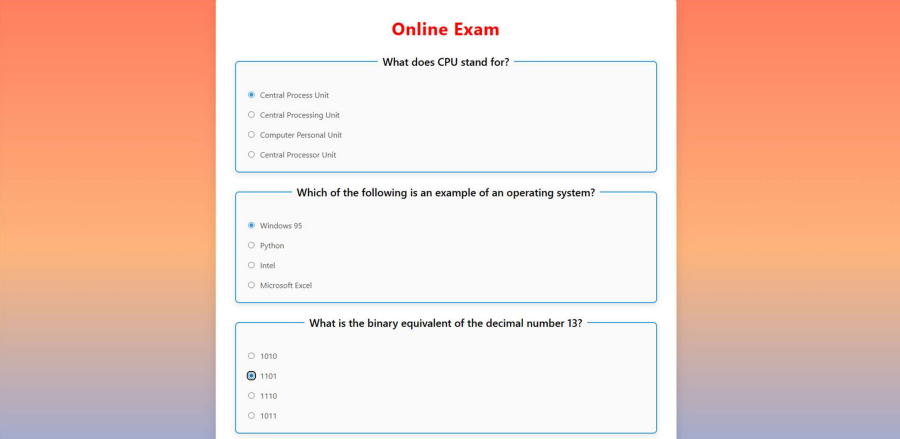

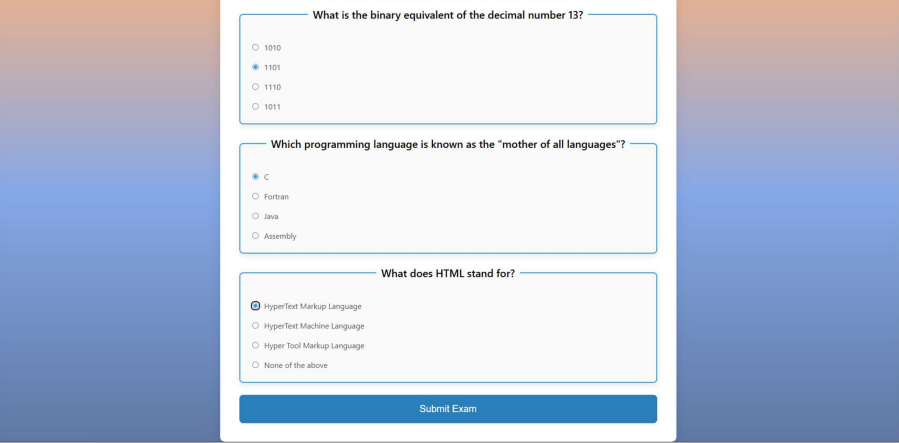

HTML Form (Exam.jsp)
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="java.util.List, java.util.Map" %>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Online Exam</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(#ff7e5f, #feb47b, #86a8e7, #5f78a3);
display: flex;
justify-content: center;
align-items: center;
min-height: 100vh;
color: #444;
}
.exam-container {
background-color: #ffffff;
border-radius: 12px;
box-shadow: 0 8px 24px rgba(0, 0, 0, 0.1);
width: 100%;
max-width: 950px;
padding: 40px;
box-sizing: border-box;
overflow-y: auto;
}
h2 {
text-align: center;
font-size: 36px;
color: red;
margin-bottom: 30px;
font-weight: 700;
letter-spacing: 1px;
}
fieldset {
border: 2px solid #3498db;
margin-bottom: 25px;
padding: 25px;
background-color: #fafafa;
border-radius: 8px;
box-shadow: 0 4px 12px rgba(0, 0, 0, 0.1);
}
legend {
font-size: 22px;
font-weight: 600;
color: black;
margin-bottom: 18px;
padding-left: 10px;
padding-right: 10px;
text-align: center;
}
.options {
display: flex;
flex-direction: column;
gap: 20px;
}
.option {
display: flex;
align-items: center;
gap: 12px;
font-size: 18px;
}
input[type="radio"] {
accent-color: #3498db;
cursor: pointer;
}
label {
font-size: 16px;
color: #555;
}
.submit-btn {
display: block;
width: 100%;
padding: 18px;
background-color: #3498db;
color: white;
font-size: 20px;
text-align: center;
border: none;
border-radius: 8px;
cursor: pointer;
transition: background-color 0.3s ease;
margin-top: 20px;
}
.submit-btn:hover {
background-color: #2980b9;
}
.submit-btn:active {
background-color: #1c5d85;
}
@media (max-width: 768px) {
.exam-container {
padding: 25px;
}
h2 {
font-size: 30px;
}
.submit-btn {
font-size: 18px;
padding: 15px;
}
}
@media (max-width: 480px) {
h2 {
font-size: 26px;
}
.submit-btn {
font-size: 16px;
padding: 12px;
}
}
</style>
</head>
<body>
<div class="exam-container">
<h2>Online Exam</h2>
<form action="result" method="post">
<%
List<Map<String, Object>> questions = (List<Map<String, Object>>) request.getAttribute("questions");
for (Map<String, Object> question : questions) {
int id = (int) question.get("id");
String text = (String) question.get("question");
String[] options = (String[]) question.get("options");
%>
<fieldset>
<legend><%= text %></legend>
<div class="options">
<%
for (int i = 0; i < options.length; i++) {
%>
<div class="option">
<input type="radio" name="<%= id %>" value="<%= i + 1 %>" required>
<label for="<%= id %>_<%= i + 1 %>"><%= options[i] %></label>
</div>
<%
}
%>
</div>
</fieldset>
<% } %>
<button type="submit" class="submit-btn">Submit Exam</button>
</form>
</div>
</body>
</html>

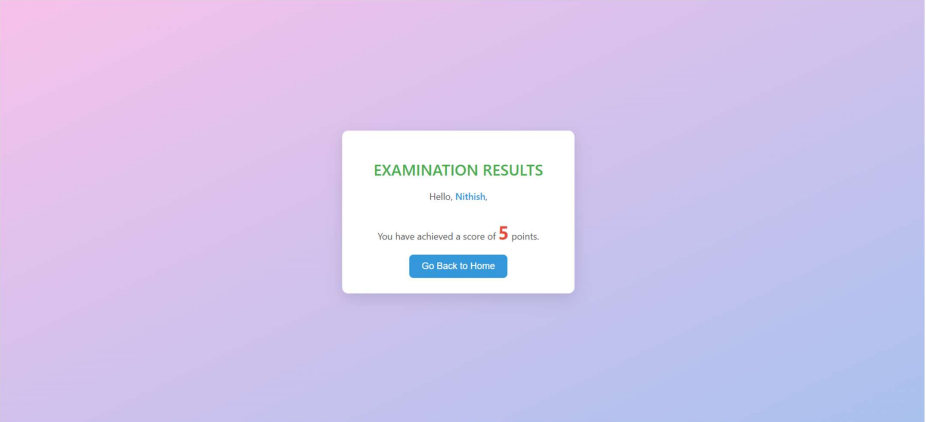

HTML Form (Result.jsp)
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Examination Results</title>
<style>
body {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
background: linear-gradient(to bottom right, #fbc2eb, #a6c1ee);
color: #444;
margin: 0;
padding: 0;
height: 100vh;
display: flex;
justify-content: center;
align-items: center;
}
h2 {
color: #4CAF50;
font-size: 30px;
margin-bottom: 20px;
text-transform: uppercase;
font-weight: 600;
}
.result-box {
background-color: #ffffff;
border-radius: 12px;
box-shadow: 0 10px 30px rgba(0, 0, 0, 0.1);
padding: 30px;
max-width: 450px;
width: 100%;
text-align: center;
box-sizing: border-box;
transition: transform 0.3s ease-in-out;
}
.result-box:hover {
transform: translateY(-10px);
}
.score {
font-weight: 700;
font-size: 36px;
color: #e74c3c;
display: inline-block;
margin-top: 15px;
}
.result-box p {
font-size: 18px;
color: #555;
margin-top: 15px;
}
.username {
font-weight: 600;
color: #3498db;
}
.button-container {
margin-top: 20px;
}
.back-btn {
padding: 12px 24px;
background-color: #3498db;
color: white;
font-size: 18px;
border: none;
border-radius: 8px;
cursor: pointer;
transition: background-color 0.3s ease;
}
.back-btn:hover {
background-color: #2980b9;
}
</style>
</head>
<body>
<div class="result-box">
<h2>Examination Results</h2>
<p>Hello, <span class="username"><%= session.getAttribute("username") %></span>,</p>
<p>You have achieved a score of <span class="score"><%= request.getAttribute("score") %></span> points.</p>
<div class="button-container">
<button class="back-btn" onclick="window.location.href='login.jsp'">Go Back to Home</button>
</div>
</div>
</body>
</html>
Servlet Code (LoginServlet.java)
import java.io.IOException;
import java.sql.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class LoginServlet extends HttpServlet {
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String username = request.getParameter("username");
String password = request.getParameter("password");
try (Connection conn = DriverManager.getConnection("jdbc:mysql://localhost:3306/examdb", "root", "password");
PreparedStatement stmt = conn.prepareStatement("SELECT * FROM users WHERE username=? AND password=?")) {
stmt.setString(1, username);
stmt.setString(2, password);
ResultSet rs = stmt.executeQuery();
if (rs.next()) {
HttpSession session = request.getSession();
session.setAttribute("username", username);
response.sendRedirect("exam.jsp");
} else {
response.sendRedirect("login.jsp?error=1");
}
} catch (SQLException e) {
e.printStackTrace();
}
}
}
Servlet Code (ExamServlet.java)
<package com.exam.servlet;>
<import com.exam.dao.DBConnection;>
<import javax.servlet.*;>
<import javax.servlet.http.*;>
<import java.io.IOException;>
<import java.sql.*;>
<import java.util.*;>
<public class ExamServlet extends HttpServlet> {
<private static final long serialVersionUID = 1L;>
<@Override>
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
List<Map<String, Object>> questions = new ArrayList<>();
try (Connection conn = DBConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery("SELECT * FROM questions")) {
while (rs.next()) {
Map<String, Object> question = new HashMap<>();
question.put("id", rs.getInt("id"));
question.put("question", rs.getString("question"));
question.put("options", new String[] {
rs.getString("option1"),
rs.getString("option2"),
rs.getString("option3"),
rs.getString("option4")
});
questions.add(question);
}
} catch (SQLException e) {
e.printStackTrace();
}
request.setAttribute("questions", questions);
RequestDispatcher dispatcher = request.getRequestDispatcher("exam.jsp");
dispatcher.forward(request, response);
}
}
Servlet Code (ResultServlet.java)
<package com.exam.servlet;>
<import com.exam.dao.DBConnection;>
<import javax.servlet.*;>
<import javax.servlet.http.*;>
<import java.io.IOException;>
<import java.sql.*;>
<public class ResultServlet extends HttpServlet> {
<private static final long serialVersionUID = 1L;>
<@Override>
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
int score = 0;
int totalQuestions = 0;
HttpSession session = request.getSession(false);
String username = (String) session.getAttribute("username");
try (Connection conn = DBConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery("SELECT * FROM questions")) {
while (rs.next()) {
totalQuestions++;
int questionId = rs.getInt("id");
int correctOption = rs.getInt("correct_option");
String userAnswer = request.getParameter(String.valueOf(questionId));
if (userAnswer != null && Integer.parseInt(userAnswer) == correctOption) {
score++;
}
}
} catch (SQLException e) {
e.printStackTrace();
}
request.setAttribute("score", score);
request.setAttribute("totalQuestions", totalQuestions);
try (Connection conn = DBConnection.getConnection();
PreparedStatement stmt = conn.prepareStatement("INSERT INTO result (name, score) VALUES (?, ?)")) {
stmt.setString(1, username);
stmt.setInt(2, score);
stmt.executeUpdate();
} catch (SQLException e) {
e.printStackTrace();
}
RequestDispatcher dispatcher = request.getRequestDispatcher("result.jsp");
dispatcher.forward(request, response);
}
}
Java Code (DBConnection.java)
<package com.exam.dao;>
<import java.sql.Connection;>
<import java.sql.DriverManager;>
<import java.sql.SQLException;>
<public class DBConnection> {
<private static final String URL = "jdbc:mysql://localhost:3306/onlineExam";>
<private static final String USER = "root";>
<private static final String PASSWORD = "";>
<public static Connection getConnection() throws SQLException> {
<try>
<Class.forName("com.mysql.cj.jdbc.Driver");>
</try>
<catch (ClassNotFoundException e)> {
e.printStackTrace();
}
<return DriverManager.getConnection(URL, USER, PASSWORD);>
}
}
Sample Output:
RESULT:
Thus, the online examination system using servlets has been successfully developed and tested.
